Thông số kỹ thuật của máy quét mã vạch 1D Opticon OPL-7734 không dây
| Operation | |
| CPU | 16-bit CMOS |
| Bộ nhớ | |
| FlashROM | 256 kB |
| RAM | 32 kB fastRAM |
| Operating indicators | |
| Visual | 1 LED (red/green/orange) |
| Non-visual | Buzzer |
| Phím chức năng | |
| Entry options | 1 scan key |
| Năng lượng | |
| Pin | Lithium-Ion 3.7V 600mAh |
| Thời gian hoạt động | 50 hours (1 scan/ 5 sec) |
| Phương thức sạc pin | Sạc thông qua cradle CRD7734 |
| Barcode scanner Optics | |
| Nguồn sáng | 650 nm visible laser diode |
| Chế độ trigger | Manual |
| Tốc độ quét | 100 scans/sec |
| Reading pitch angle | -20 to 0°, 0 to +20° |
| Reading skew angle | -50 to -8°, +8 to +50° |
| Reading tilt angle | -50 to 8°, 8 to +50° |
| Độ cong | R>15 mm (EAN8), R>20 mm (EAN13) |
| Min. resolution at PCS 0.9 | 0.15 mm / 6 mil |
| Min. PCS value | 0.45 |
| Depth of field | At PCS 0.9 : Code 39 50 – 360 mm / 1.97 – 14.17 in (1.0 mm / 39 mil), 30 – 270 mm / 1.18 – 10.63 in (0.5 mm / 20 mil),30 – 140 mm / 1.18 – 5.51 in (0.25 mm / 10 mil), 30 – 70 mm / 1.18 – 2.76 in (0.15 mm / 6 mil) |
| Giao thức kết nối | |
| IEEE 802.15.4 | Output power class 2, range up to 30m, 1 to 1/8 to 1 connection (8 scanners to 1 CRD-7734), encryption. |
| Hỗ trợ mã vạch | |
| Barcode (1D) | JAN/UPC/EAN incl. add on, Codabar/ NW-7, Code 11, Code 39, Code 93, Code 128, GS1-128 (EAN-128), GS1 DataBar (RSS), IATA, Industrial 2of5, Interleaved 2of5, ISBN-ISMN-ISSN, Matrix 2of5, MSI/Plessey, S-Code,Telepen, Tri-Optic, UK/Plessey |
| Postal code | Chinese Post, Korean Postal Authority code |
| 2D code | Composite codes, MicroPDF417, PDF417 |
| Tiêu chuẩn môi trường | |
| Temperature in operation | 0 to 40 °C / 32 to 104 °F |
| Temperature in storage | -20 to 60 °C / -4 to 140 °F |
| Humidity in operation | 25 – 85 % (non-condensing) |
| Humidity in storage | 20 – 90 % (non-condensing) |
| Ambient white light rejection | 3,000 lx max |
| Ambient direct sun light rejection | 50,000 lx max |
| Ambient incandescent light rejection | 3,000 lx max |
| Shock drop test | 1.5 m / 5 ft drop onto concrete surface |
| Thông số vật lý | |
| Dimensions (w x h x d) | 55 x 150 x 115 mm / 2.17 x 5.91 x 4.53 in |
| Weight body | Ca. 130 g / 5 oz |
| Case | ABS, Black or White |
| Tiêu chuẩn chất lượng | |
| EMC / Product compliance | CE, FCC, VCCI, RoHS,JIS-C-6802 Class 2 |
| Phụ kiện bán riêng | |

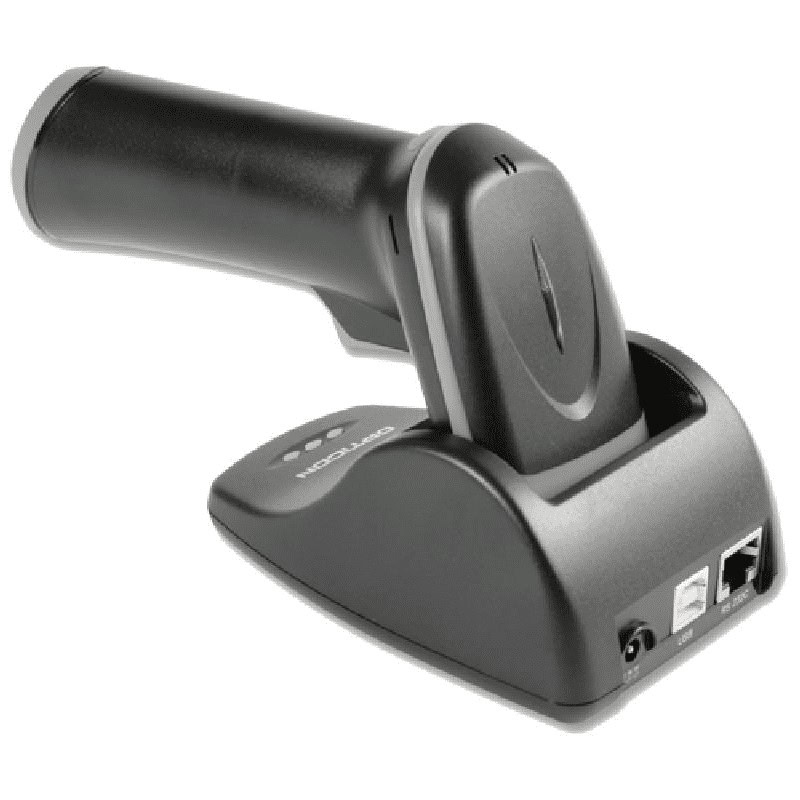

| CRD7734 Cradle | IEEE 802.15.4 communication, charging |
