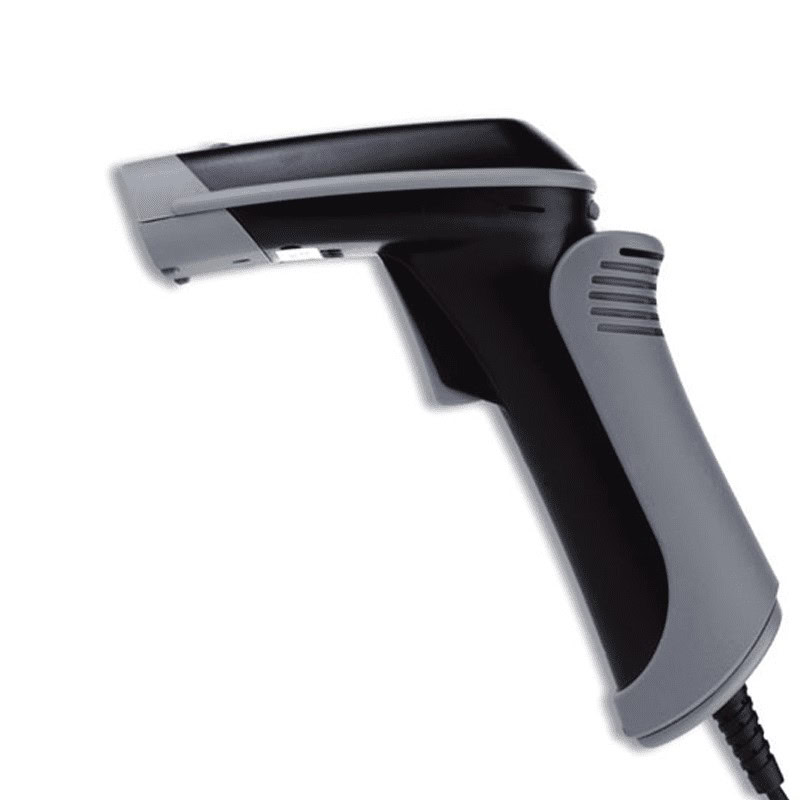

Thông số kỹ thuật của máy quét mã vạch 2D Opticon OPI-2002 có dây
| Operating indicators | |
| Visual | 1 LED (red/green/orange) |
| Non-visual | Buzzer |
| Operating keys | |
| Entry options | 1 scan key |
| Communication | |
| RS232 | DB9 PTF connector with external power supply |
| Keyboard Wedge | DIN5 F/M connector, MiniDIN6 F/M connector with external power supply |
| USB | Ver. 1.1, HID/VCP, USB-A connector |
| Power | |
| Voltage requirement | 6V ± 5% |
| Current consumption | 340mA (typical use) |
| 2D Imager Optics | |
| 2D Light source | 10 red LEDs 630 nm |
| 2D Scan method | CMOS area sensor, SXGA (1.3 million pixels), gray scale |
| 2D Scan rate | Up to 30 fps |
| 2D Trigger mode | Manual, multiple read, auto-trigger, stand detection |
| 2D Image format | Windows Bitmap, JPEG, TIFF |
| 2D Gradulation | 256, 16, 2 |
| 2D Image output mode | 4 resolutions (full, 1/2, 1/3, 1/4), 2 ranges (horizontal, vertical) |
| 2D Reading pitch angle | -60 to 0°, 0 to +60° |
| 2D Reading skew angle | -65 to 0°, 0 to +65° |
| 2D Reading tilt angle | 360° |
| 2D Focal plane | 110 mm / 4.33 in from window |
| 2D Curvature | R>15 mm (EAN8), R>20 mm (EAN13) |
| 2D Min. Resolution at PCS 0.9 | 0.127 mm / 5 mil |
| 2D Min. PCS value | 0.45 |
| 2D Field of view | Horizontal 47º, Vertical 37.5º |
| 2D Depth of field | *40 – 195 mm / 1.57 – 7.68 in (0.339 mm / 13 mil)*, *85 – 125 mm / 3.35 – 4.92 in (0.127 mm / 5 mil)*, 35 – 230 mm / 1.38 – 9.06 in (0.5 mm / 20 mil), 55 – 160 mm / 2.17 – 6.30 in (0.25 mm / 10 mil), 85 – 125 mm / 3.35 – 4.92 in (0.127 mm / 5 mil), at *PDF417* and Code 39 |
| Supported Symbologies | |
| Barcode (1D) | JAN/UPC/EAN incl. add on, Codabar/NW-7, Code 39, Code 93, Code 128, GS1-128 (EAN-128), GS1-128 (EAN-128), GS1 DataBar (RSS), IATA, Industrial 2of5, Interleaved 2of5, ISBN-ISSN-ISMN, Matrix 2of5, MSI/Plessey, S-Code, Telepen, Tri-Optic, UK/Plessey |
| Postal code | Chinese Post, Korean Postal Authority code |
| 2D code | Aztec Code, Aztec Runes, Composite codes, Data Matrix (ECC200/EC0-140), Maxi Code (mode 2~5), MicroPDF417, Micro QR Code, PDF417, QR code |
| Durability | |
| Temperature in operation | -20 to 50 °C / -4 to 122 °F |
| Temperature in storage | -25 to 70 °C / -13 to 158 °F |
| Humidity in operation | 5 – 95% (non-condensing) |
| Humidity in storage | 5 – 95% (non-condensing) |
| Ambient light immunity | Fluorescent 10,000 lx max, Direct sun 100,000 lx max, Incandescent 10,000 lx max |
| Antistatic electricity | 15 kV (non-destructive) |
| Drop test | 1.8 m / 6 ft drop onto concrete surface |
| Vibration test | 10 – 100 Hz with 2G for 1 hour |
| Protection rate | IP 42 |
| Physical | |
| Dimensions (w x h x d) | 55 x 149 x 129 mm / 2.17 x 5.87 x 5.04 in |
| Weight body | Ca. 135 g / 4.8 oz (excl. cable) |
| Case | ABS, Black |
| Regulatory & Safety | |
| Product compliance | CE, FCC, VCCI, RoHS |
