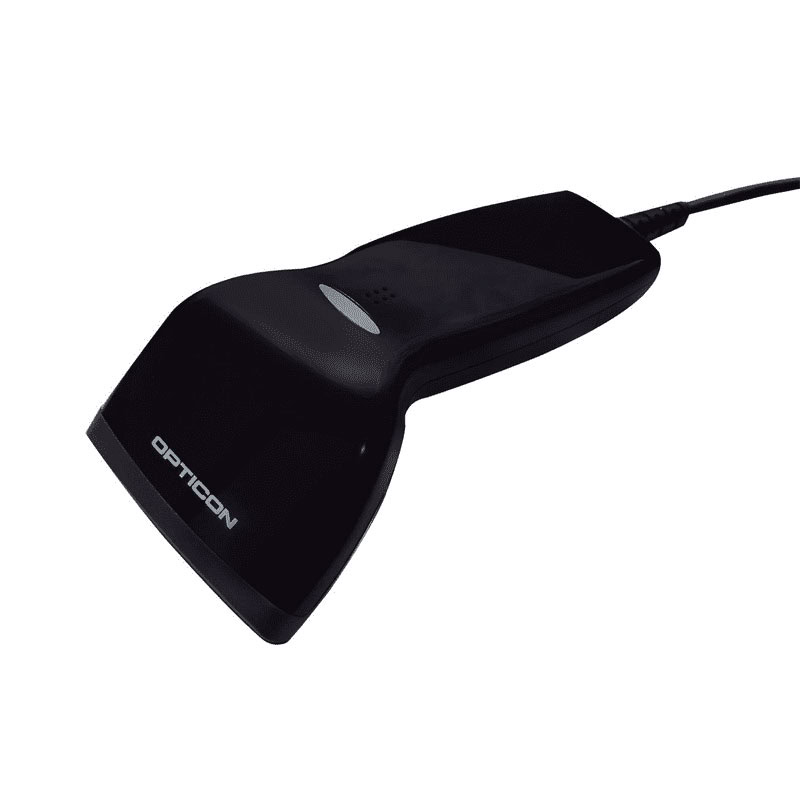

Thông số kỹ thuật của máy quét mã vạch 1D Opticon C37 có dây
| Operating indicators | |
| Visual | 1 LED (red/green/orange) |
| Non-visual | Buzzer |
| Operating keys | |
| Entry options | 1 scan key |
| Communication | |
| RS232 | DB9 F connector with external power supply |
| Keyboard Wedge | MiniDIN6 F/M connector |
| USB | Ver. 1.1, HID, USB-A connector |
| Power | |
| Voltage requirement | 5V ± 10% (Keyboard Wedge and USB), 6V (min. 4.5, max. 6.6V) (RS232) |
| Barcode scanner Optics | |
| Light source | 630 nm red LED |
| Scan method | CCD linear Sensor 2500 pixels |
| Scan rate | 200 scans/sec |
| Trigger mode | Manual, auto-trigger |
| Reading pitch angle | -35 to 0°, 0 to +35° |
| Reading skew angle | -70 to -20°, 20 to +70° |
| Reading tilt angle | -20 to 0°, 0 to +20° |
| Curvature | R>15 mm (EAN8), R>20 mm (EAN13) |
| Min. resolution at PCS 0.9 | 0.125 mm / 5 mil |
| Depth of field | 0 – 15 mm / 0 – 0.59 in, at PCS 0.9, Code 39 |
| Supported Symbologies | |
| Barcode (1D) | JAN/UPC/EAN incl. add on, Codabar/NW-7, Code 11, Code 39, Code 93, Code 128, GS1-128 (EAN-128), GS1 Databar (RSS), IATA, Industrial 2of5, Interleaved 2of5, ISBN-ISSM-ISSN, Matrix 2of5, MSI/Plessey, S-Code, Telepen, Tri-Optic,UK/Plessey |
| Postal code | Chinese Post, Korean Postal Authority code |
| Durability | |
| Temperature in operation | 0 to 50 °C / 32 to 122 °F |
| Temperature in storage | -20 to 60 °C / -14 to 140 °F |
| Humidity in operation | 5 – 95% (non-condensing) |
| Humidity in storage | 5 – 95% (non-condensing) |
| Ambient light immunity | Fluorescent 10,000 lx max, Incandescent 10,000 lx max |
| Drop test | 1.5 m / 5 ft drop onto concrete surface |
| Vibration test | 10 – 100 Hz with 2G for 1 hour |
| Protection rate | IP 42 |
| Physical | |
| Dimensions (w x h x d) | 53 x 75 x 150 mm / 2.09 x 2.95 x 5.91 in |
| Weight body | Ca. 90 g / 3.2 oz (excl. cable) |
| Case | ABS, Black or White |
| Regulatory & Safety | |
| Product compliance | CE, FCC, VCCI, RoHS |
